ELA01 Linear Actuator (ELA01-S150R325F6000B90PP1)

KEY FEATURES

More Powerfull
More Silent
More Duty Cycle
Lower Cost
Longer Life

STANDARD SPECIFICATIONS

Push Load Capacity: 6000 N (max.)
Pull Load Capacity : 4000 N (max.)
Speed (full load to no load): 7-9 mm/s

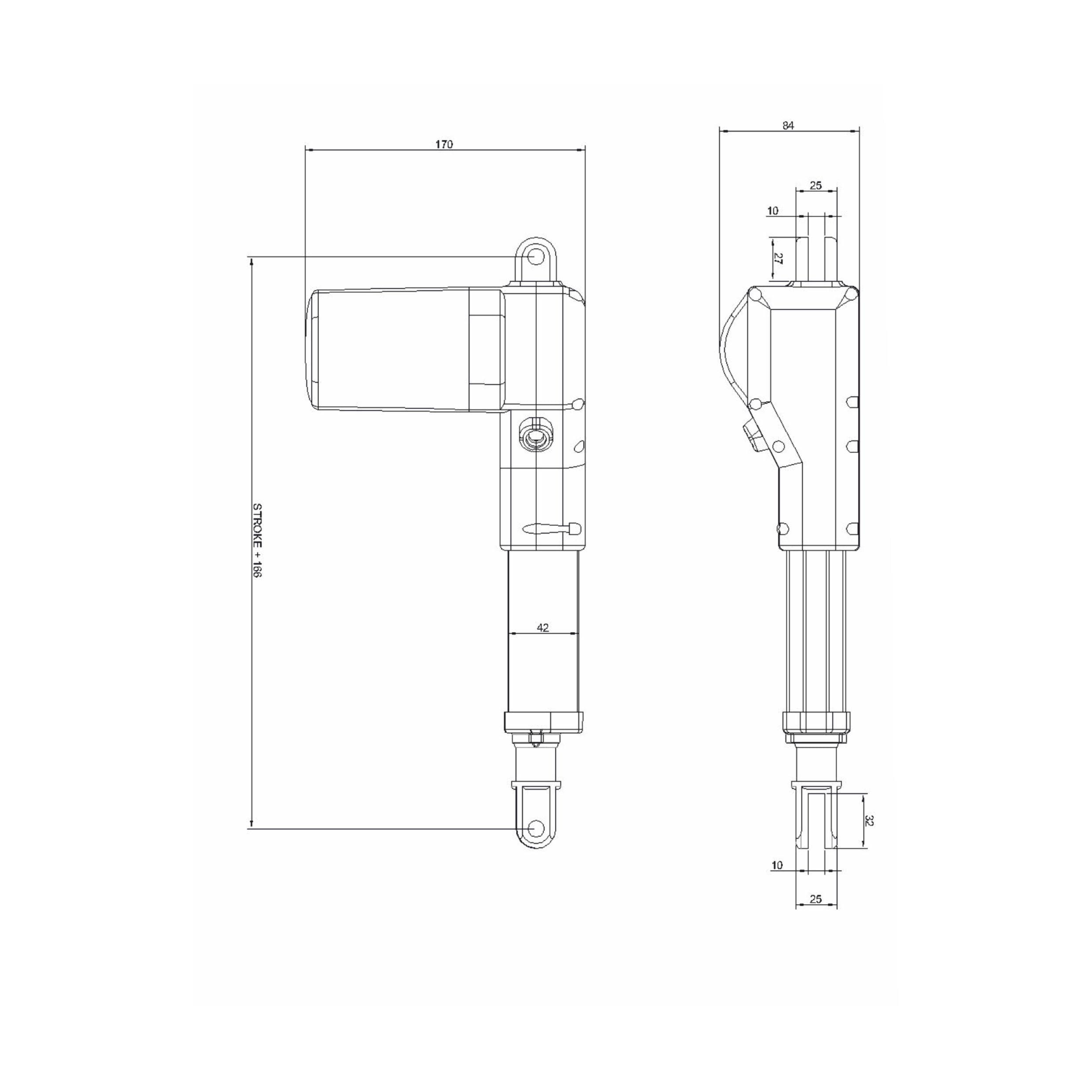

Installation Dimension: Stroke + 171 mm
Motor : 24 V DC
Motor : 24 V DC: 120 W
Current Consumption: 5A
Limit Switch: Signal Type
Limit Switch: 10% (1/9)
Housing Colour: Grey RAL 7035
Guidance Profile: Anodized Aluminium
Stroke Pipe: Anodized Aluminium
Gear Clevis: 4 x 90 °
Protection Type: IPX6
Cable: 1 ,5 m with Minifit Plug
